Geometry diff report — ? → ?

moved_old.stp → moved_new.stp

2 geometric change(s), 0 BOM-level change(s)

Geometric changes

1. BRACKET_03 — shape changed

Volume change	`192.00 mm³`
Volume change (%)	`15.38 %`
Material removed	`192.0000 mm³`
Material added	`0.0000 mm³`
Separate clusters	`1`
Changed extent	`4.0 × 12.0 × 4.0 mm`

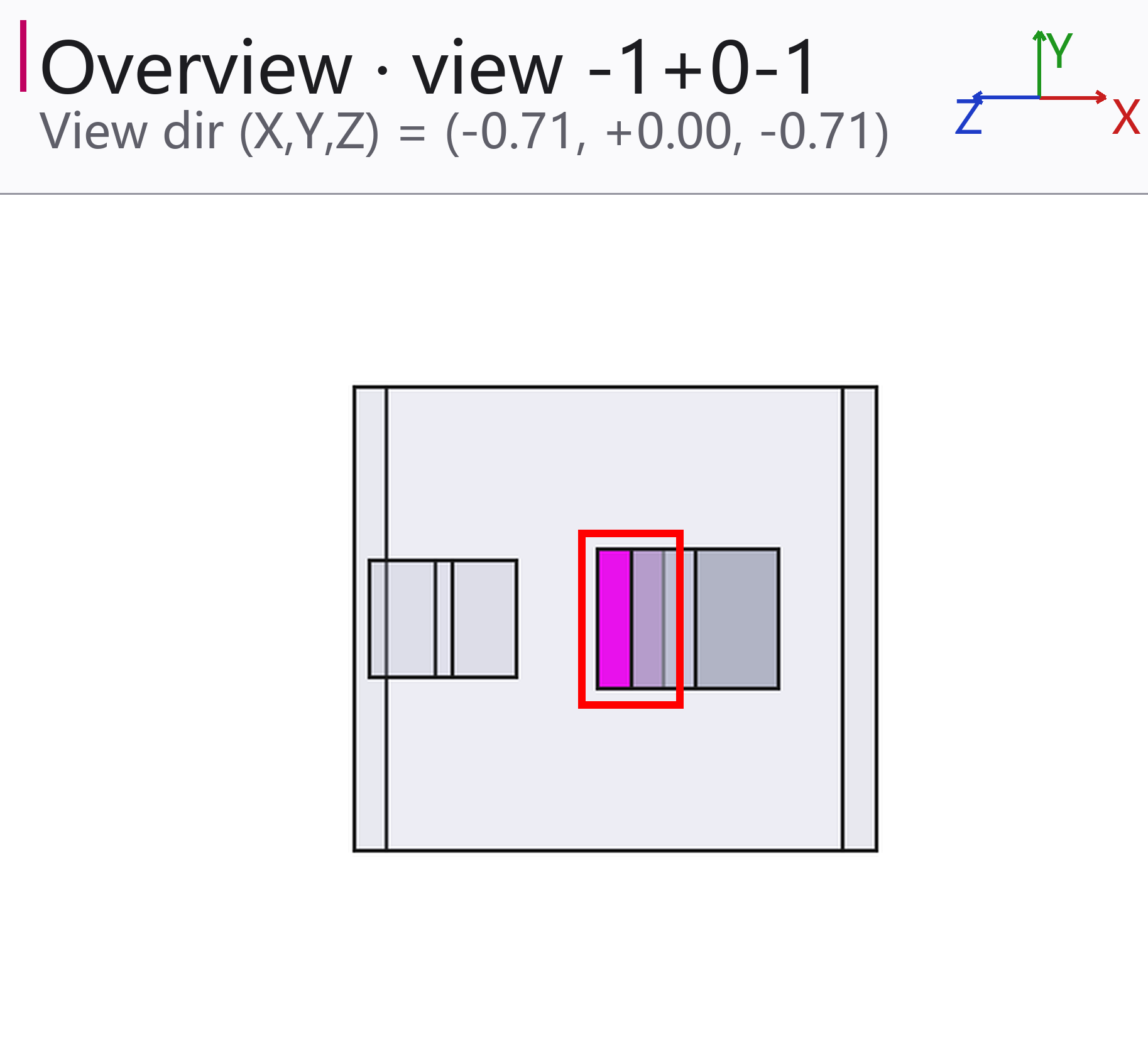

BRACKET_03 — shape changed — Overview

BRACKET_03 — shape changed — Old version, close-up

BRACKET_03 — shape changed — New version, close-up

2. SLIDER_02 — moved

Translation	`5.00 mm`
Changed extent	`10.0 × 10.0 × 8.0 mm`

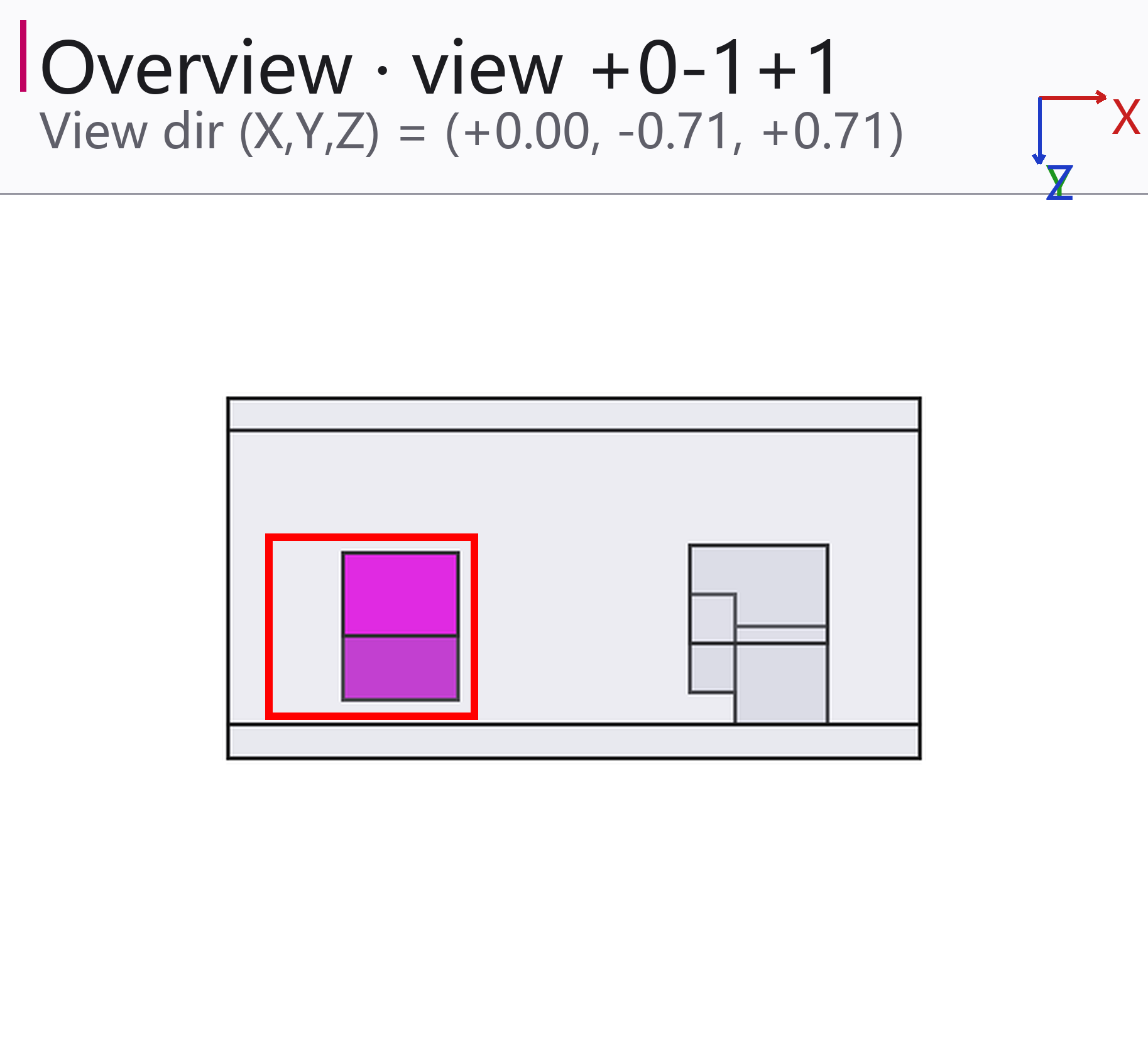

SLIDER_02 — moved — Overview

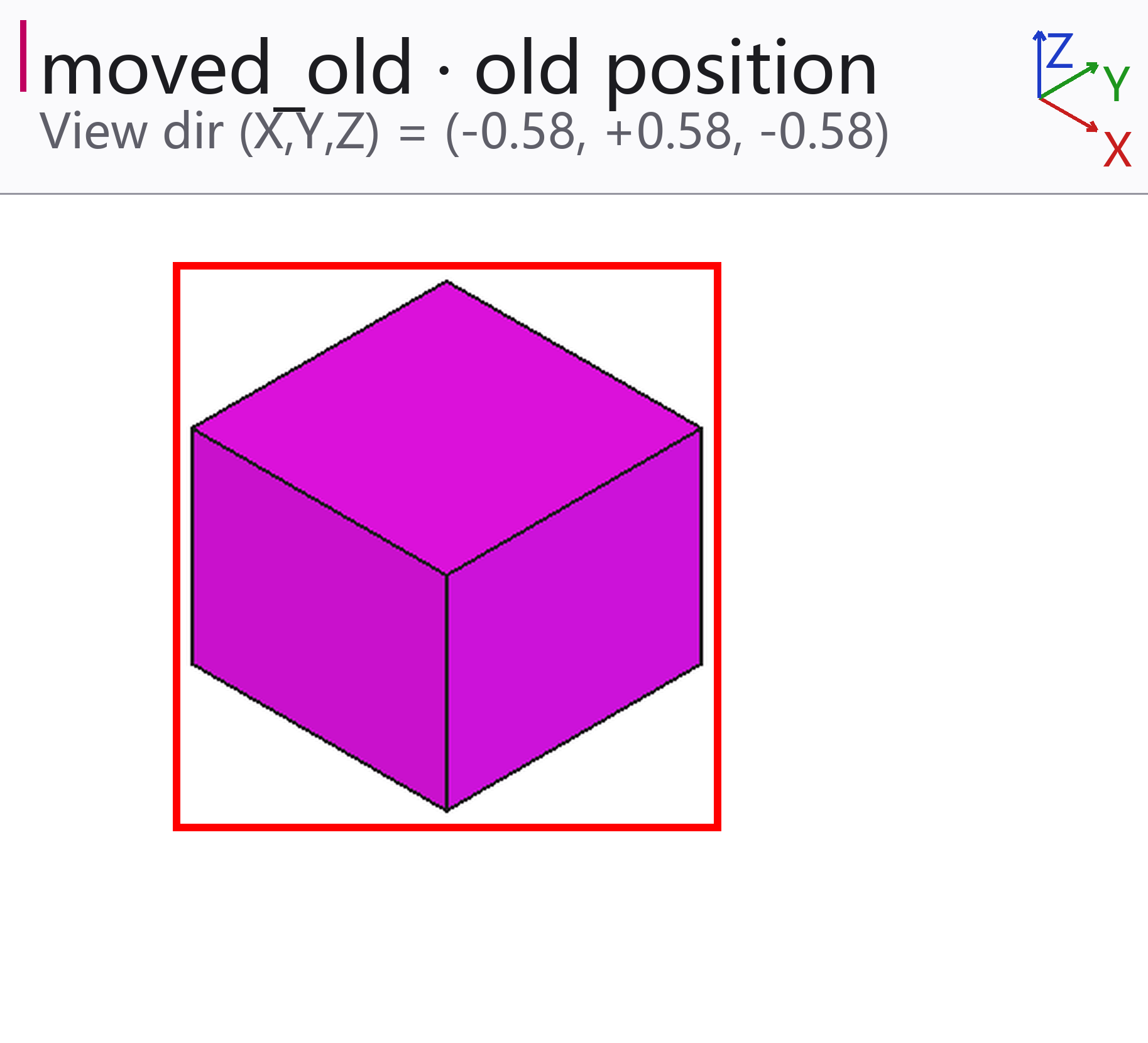

SLIDER_02 — moved — Old version, close-up

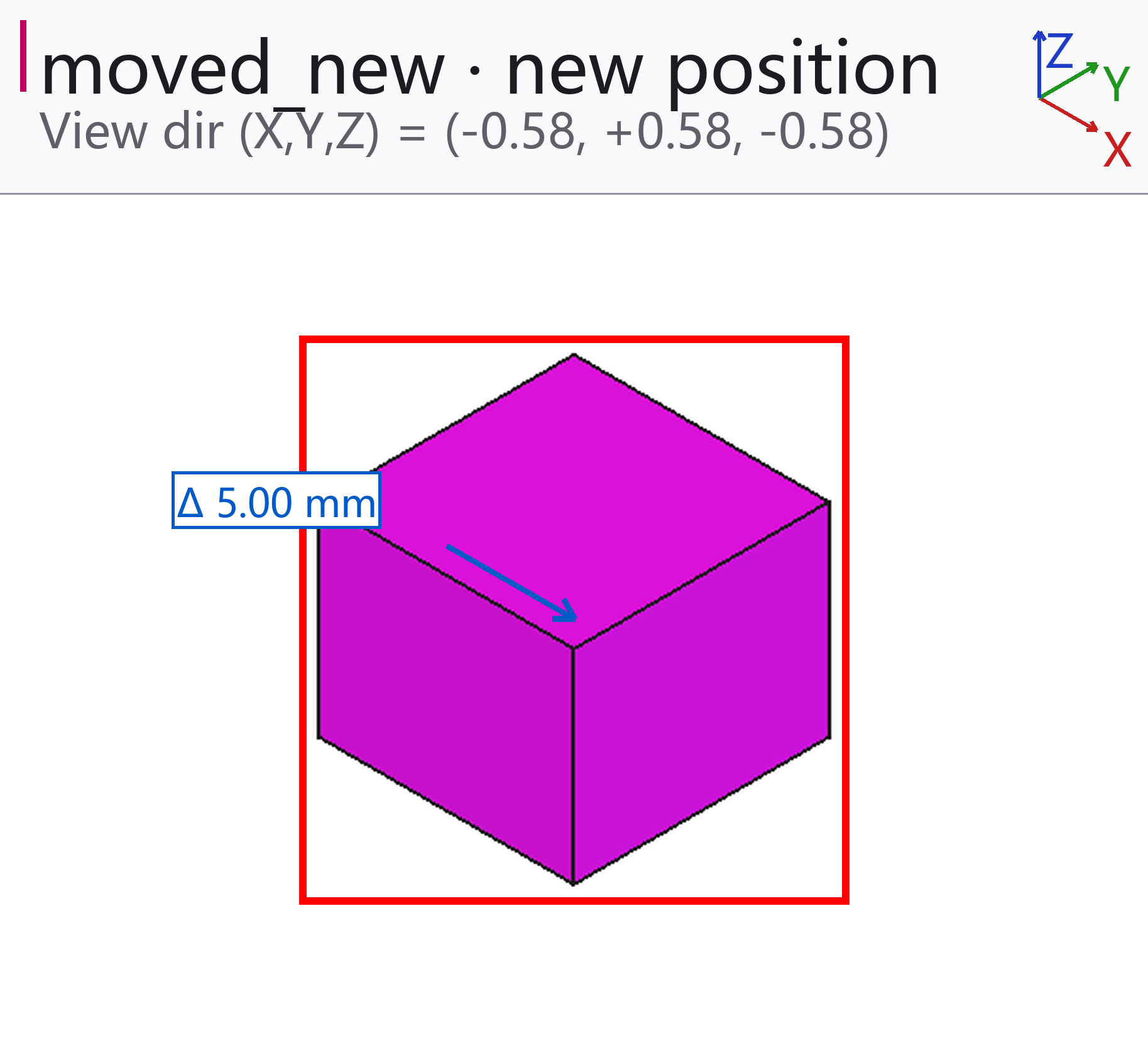

SLIDER_02 — moved — New version, close-up

Not compared / not resolved

**MovedFixture** — assembly container — its shape is the union of its children, so it is not counted separately

Settings used

boolean_timeout_s	`60`
max_faces_for_boolean	`5000`
min_diff_pct	`0.0`
render_timeout_s	`300`
skip_parts	`[]`
